Finishing TiN Coating Carbide Hob For Gear Cutting Machine

Product Categories
Zhuzhou Aohua Tools Co.,Ltd.
Contact Now

Finishing TiN Coating Carbide Hob For Gear Cutting Machine

  • 1
  • 2
  • 3

Brand Name : AOJIA

Model Number : Φ32×L30×Ф13 m1 α21° or to be customized

Certification : ISO standard

Place of Origin : CHINA

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : spot goods

Delivery Time : within 14 working days

Packaging Details : Inner packing plastic bag, outer packing superhard carton

name : Carbide gear hob with TiN coating for gear cutting machine

material : tungsten carbide or high speed steel or high cobalt steel or powder metallurgy

coating : TiN, AT, AP

Processing : roughing, semi-finishing,finishing,

application : for Gleason gear cutting machine for OERLIKON gear cutting machine

dimension : Φ32×L30×Ф13 m1 α21° or to be customized

Standard : German Sandard

precision : AAA,AA,DIN3968

Contact Now

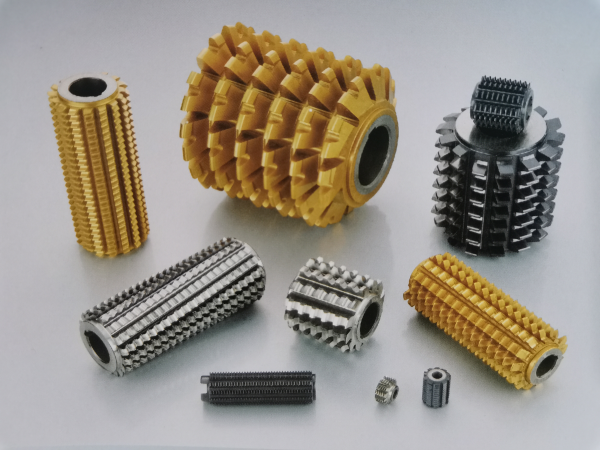

TiN Coating Carbide Gear Hob For Gear Cutting Machine

Carbide gear hobs from AoHua Cutting Tools can replace original Gleason gear hobs, and even exceeding that in terms of cost and working efficency.

Standard Gear Hob

Module: m0.2-m30,Dp, PA20

Patterns: Finishing, Roughing, Pre-shaving, Pre-grinding

Outside Dia. 10-280mm, Length max.: 590mm

Precision AA,AAA (DIN3968)

Material: HSS M2, M35, S390,Carbide

Coating: TiN, AP

Tooth profile is according to GB or DIN3972-2 standard, pressure angle PA20°

and Specification of standard gear hob m1-10 for finishing cut.

specification
m ∅D ∅d L ∅D1 L
8type 0.1~0.15 25 8 8 17.5 0.5
0.2~0.3 25 8 10 17.5 0.5
0.35~0.8 25 8 12 17.5 0.5
10type 0.2~0.25 32 10 12 22.5 1
0.3~0.45 32 10 15 22.5 1
0.5~1.0 32 10 20 22.5 1

Finishing TiN Coating Carbide Hob For Gear Cutting Machine


Product Tags:

Finishing TiN Coating Carbide Hob



Gear Cutting Machine Carbide Hob



Tungsten Carbide Gear Hob
